Our extruders and complete production lines process plastics and rubber across pipe, sheet, profile, cable, recycling and compounding. Below are typical pelletizing and compounding line configurations.

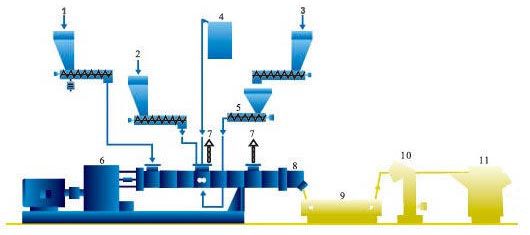

Strand Pelletizing Sets
Applied Range: reinforced plastics compounding and modification, inorganic additives loading, varieties of cable compound, parent granules, insulation cable compound, master batch, fire retardant material.
Line Configuration: 1. Measuring Feeder 2. Measuring Feeder 3. Measuring Feeder 4. Liquid Container 5. Side Feeder 6. Twin Screw Extruder 7. Venting Outlet 8. Cool-cutting Die-head 9. Cooling Water Tank 10. Dryer 11. Storage Hopper
Air-cooling Pelletizing Sets
Applied Range: high loading parent granules (more than 50% additives), XLPE cross-linked screen, cable compound, PVC cable compound, sole of shoes compound, TPR elastomers of thermoplastics.
Line Configuration: 1. Measuring Feeder 2. Twin Screw Extruder 3. Venting 4. Air-cooling Pelletizer 5. Transmitting Fan 6. The First Spiral Cyclone 7. The Second Spiral Cyclone 8. Vibrating Screen

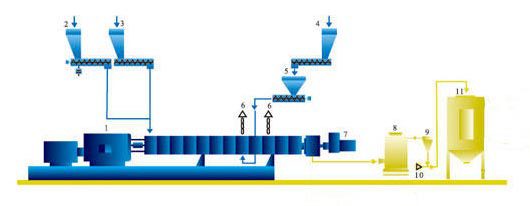

Water-ring Pelletizing Set
Applied Range: cable compounds, EVA thermoplastics, varieties of color concentrate, and plastics with low or middle loading, TPU, TPR, elastomers of thermoplastics.
Line Configuration: 1. Twin Screw Extruder 2. 3. 4. Measuring Feeder 5. Side Measuring Feeder 6. Venting 7. Water Ring Pelletizer 8. Hydroextractor 9. Collector 10. Transmitting Fan 11. Storage Hopper

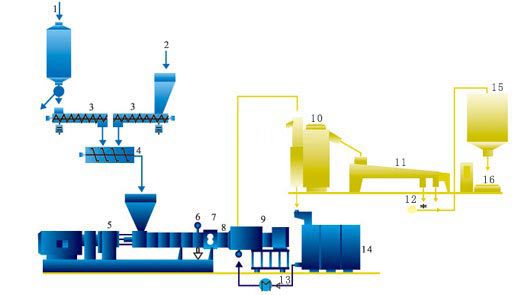

Under-water Pelletizing Set
Applied Range: cable compounds, EVA thermoplastics, varieties of color concentrate, and plastics with low or middle loading, TPU, TPR, elastomers of thermoplastics.
Line Configuration: 1. Twin Screw Extruder 2. 3. 4. Measuring Feeder 5. Side Measuring Feeder 6. Venting 7. Under-water Pelletizer 8. Hydroextractor 9. Collector 10. Transmitting Fan 11. Storage Hopper
